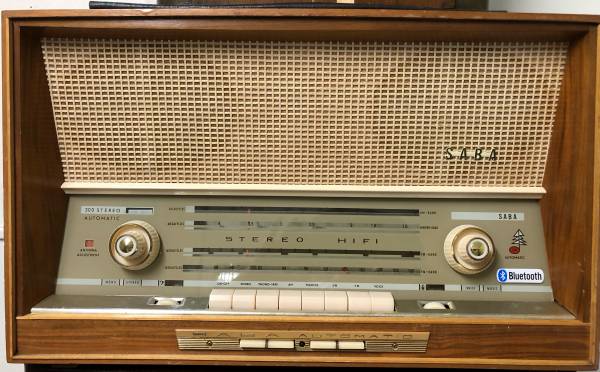

SABA Automatic 300 AM-FM - $895 (Lawrence)
QR Code Link to This Post
Sabas were the top of the line, and the 300 Auto (at least in the desktop version) was one of Saba's better sets.
TECHNICAL INFORMATION
Previous
* Number of Tubes
* 9
* Valves / Tubes
* (2) EC92; (2) EABC80; ECH81; EL84; EF85; ECL80; EM84
* Main principle
* Superheterodyne (common); ZF/IF 460 kHz
* Tuned circuits
* 9 AM circuit(s) 12 FM circuit(s)
* Wave bands
* Broadcast, Long Wave, Short Wave plus FM or UHF.
* Power type and voltage
* Alternating Current supply (AC) / 60 cycles 110; 125; 150; 220 Volt
* Loudspeaker
* 3 Loudspeakers
* Material
* Wooden case
* Model: 300 Automatic 300-9T - SABA; Villingen
* Shape
* Tablemodel with Push Buttons.
* Dimensions (WHD)
* 25.5 x 15 x 11 inch / 648 x 381 x 279 mm
* Notes

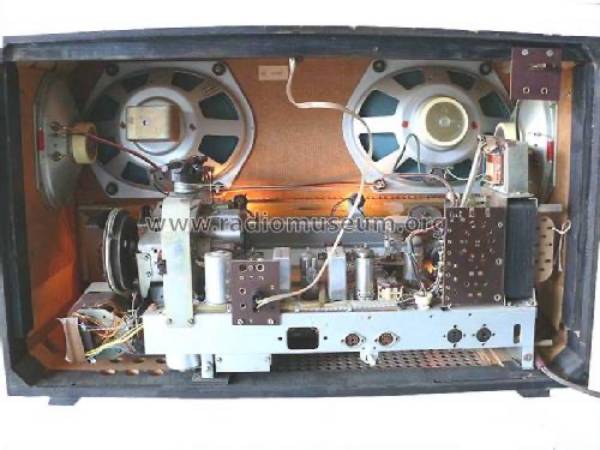

* The SABA 300 Automatic 9T has the same chassis as the Meersburg-Automatic 9 and is an AC operated 9 tube FM-BC-SW-LW receiver. One might think the models have 4 speakers - but you see on the photo for the inside that it is three speakers whith soundcompressor. Longwave is from 140 to 360 kc, Short wave from 5.9 to 18.9 mc, Broadcast from 510 to 1640 mc and FM from 88 to 108 mc.
